What Is a Soda Gun System and Why Your Bar Needs One
A soda gun system is one of the most efficient tools behind any busy bar or restaurant counter — and if you've ever dealt with a sticky nozzle, flat soda, or a mystery puddle under the ice bin, you already know how quickly things go wrong without the right setup.
Here's a quick answer to what a soda gun system is and how it works:
| Feature | Details |
|---|---|
| What it is | A handheld bar gun that dispenses multiple beverages through a single hose |
| How it works | Mixes bag-in-box syrup with carbonated water at the moment of pour |
| Flavors available | Typically 2 to 6 flavors per gun, plus seltzer and plain water |
| Cooling method | Cold plate, remote chiller, or under-counter ice maker |
| Key components | Bar gun, CO2 tank, regulator, syrup pumps, carbonator |
| Best for | Bars, restaurants, home setups, concession stands |
The appeal is simple: one compact gun, multiple drinks, minimal counter space. Soda guns — also called bar guns — are the smallest dispensers available, which makes them especially popular in tight bar setups where every inch counts.
But compact doesn't mean simple. Getting consistent, great-tasting soda out of a post-mix gun requires the right components, correct CO2 pressure, proper brixing (syrup-to-water ratios), and regular cleaning. Skip any of those steps and you'll end up with flat drinks, sticky counters, or worse — an unhappy customer.
This guide walks you through everything you need to know to run a post-mix soda gun system cleanly and confidently.
Understanding the Soda Gun System: Post-Mix vs. Pre-Mix
A professional soda gun system typically operates on a "post-mix" principle. Unlike pre-mix systems, which dispense finished soda from a keg, post-mix systems combine concentrated bag-in-box (BIB) syrup with carbonated water at the moment of dispense. This method is not only more cost-effective but also significantly reduces storage space requirements—a critical advantage for any commercial establishment. Carbonator Rental specializes in providing and maintaining these efficient post-mix systems, ensuring you maximize your space and budget. View various beverage equipment options
To help you decide which path is right for your business, consider how these two technologies stack up:
| Feature | Post-Mix System (Standard) | Pre-Mix System (Events/Portable) |
|---|---|---|
| Ingredients | Water + CO2 + Syrup (BIB) | Ready-to-drink soda in a keg |
| Storage | Very low (syrup boxes are compact) | High (bulky 5-gallon kegs) |
| Cost per Pour | Lowest (high yield per box) | Higher (paying for water/shipping) |
| Electricity | Required for carbonator/chiller | Not always required (portable) |
| Best Use | High-volume bars and restaurants | Mobile bars, remote events, home use |
At Carbonator Rental, we’ve been "Powering the Perfect Pour Since 1955," and we’ve found that for 95% of our Philadelphia and New Jersey clients, the post-mix soda gun system is the clear winner for long-term profitability and efficiency.
Choosing the Right Soda Gun System for Your Space
Selecting the ideal soda gun system involves considering factors like countertop footprint, under-counter chillers, cold plates, and desired flavor configurations. Carbonator Rental's experts provide tailored consultations, guiding you through options to find the perfect fit for your bar's unique layout and operational needs.
When choosing, ask yourself:
- How many flavors do I need? Systems range from simple 2-flavor setups to massive 14-button Wunder-Bar guns that handle juices, sodas, and energy drinks.
- What is my ice situation? If you have a built-in ice bin, a "cold plate" system is cost-effective. If not, you may need a remote chiller.
- Where will the "back of house" go? Your pumps and syrup racks can be up to 100 feet away in some remote configurations, or tucked directly under the counter.

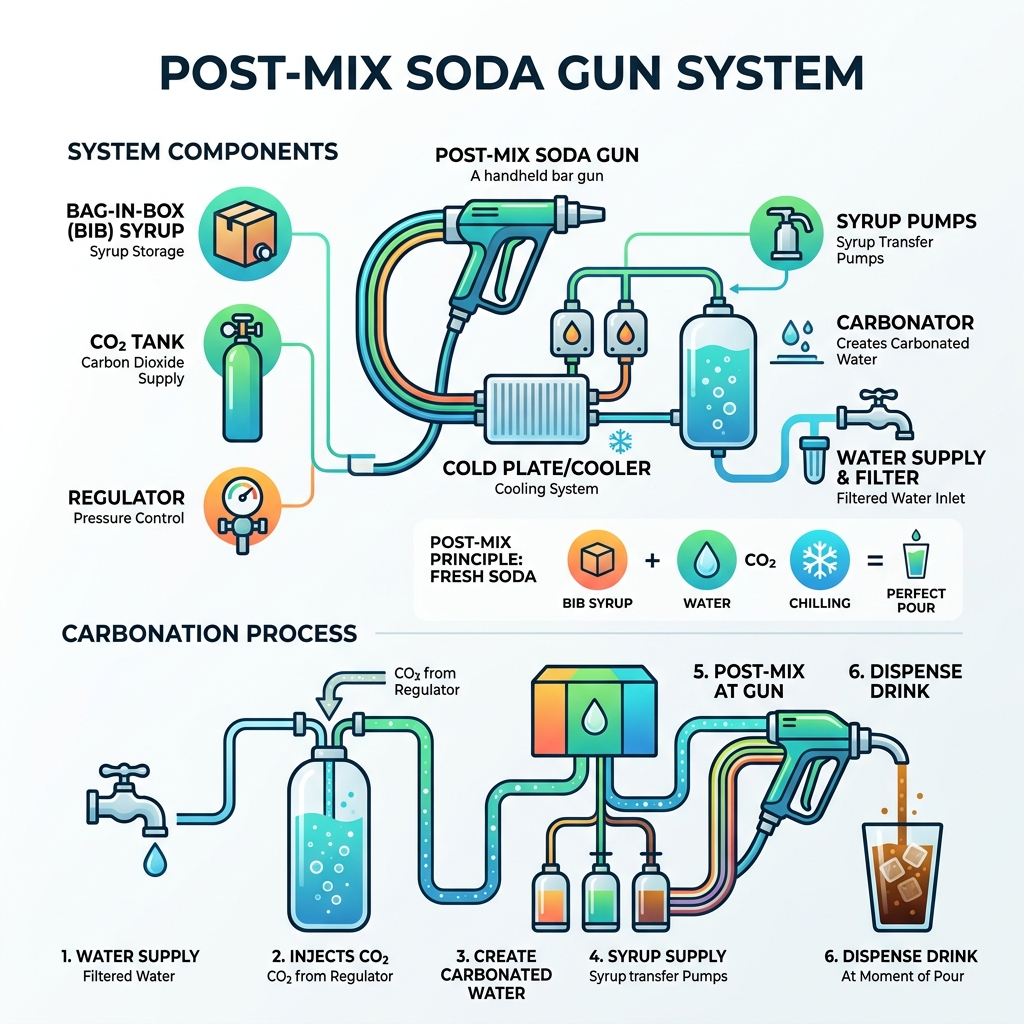

Essential Components of a Professional Soda Gun System
A reliable soda gun setup extends beyond the gun itself, encompassing a network of critical components. This includes high-quality bar guns, robust CO2 tanks, precise syrup pumps, and efficient carbonators. Carbonator Rental supplies all these essential components, ensuring a complete and integrated beverage dispensing solution designed for durability and performance. More info about beverage dispensing equipment
The "Big Five" components you'll find in our professional setups include:
- The Bar Gun: Brands like Wunder-Bar are the industry standard. These are ergonomic and can be configured for any mix of carbonated and non-carbonated drinks.
- Syrup Pumps: Pneumatic pumps that pull syrup from the bag-in-box (BIB) using CO2 or compressed air.
- The Carbonator: The "engine" of the system. It takes plain water and high-pressure CO2 to create the seltzer that mixes with your syrup.
- CO2 Tank and Regulators: These manage the pressure for both the carbonation and the pumping of the syrup.
- Cooling System: Either a cold plate (submerged in ice) or an electric remote chiller to ensure the drink hits the glass at the perfect temperature.
Powering Your Soda Gun System: CO2 and Electricity
The heart of any post-mix system relies on a consistent supply of CO2 and proper electrical connections. High-pressure hosing and precise regulators are crucial for delivering the right amount of gas to the carbonator. Carbonator Rental not only supplies food-grade CO2 but also handles the intricate setup of regulators and hosing, ensuring safety and optimal performance.
We also advise on power requirements and essential water filtration systems to protect your equipment and enhance beverage quality. In the Philadelphia and Wilmington areas, water hardness can vary significantly. A high-quality filter prevents scale buildup in your carbonator and ensures your ginger ale doesn't taste like the local plumbing!
Installation and Cooling Requirements for Your Bar
Proper installation is paramount to preventing future headaches and messes. Whether you opt for remote chillers or ice-cooled cold plates, adequate airflow clearance and professional setup are non-negotiable. Carbonator Rental's team provides expert installation services, meticulously planning and executing every detail to integrate your soda gun system seamlessly into your bar's workflow. More info about beverage equipment installation services
Cooling Methods: Cold Plate vs. Remote Chiller
- Cold Plate: This is a heavy block of aluminum with stainless steel tubes inside. It sits at the bottom of your ice bin. As the soda and water travel through the tubes, the surrounding ice chills them. It's simple, non-electric, and very reliable—as long as you keep it covered in ice!
- Remote Chiller: If you don't have an ice bin nearby, a remote chiller (or "flash chiller") uses a refrigerated water bath to cool the lines. These are great for high-volume accounts because they provide "cold carbonation," which holds gas better than warm water.
Managing Drainage and Preventing Messes
A well-designed system anticipates and prevents spills. Components like drain pumps, drip cups, and secure hose hangers are vital. Professional clamping ensures all connections are tight, minimizing leaks and maintaining a clean, hygienic environment.
One of the biggest causes of a "messy" bar is the lack of a proper drain for the soda gun holster. If your bar doesn't have a floor drain nearby, we can install an electric drain pump to whisk away the drips. This prevents that "old soda" smell that can plague poorly maintained bars. Our installations prioritize these details, ensuring your bar remains spotless and efficient.
Maintenance and Brixing: Ensuring the Perfect Pour
Maintenance is the most critical factor in preventing equipment downtime and ensuring consistent drink quality. Nozzles should be removed and soaked in warm water daily to prevent syrup buildup, which can cause buttons to stick or spray deflection. Furthermore, professional maintenance programs are essential for checking the health of your carbonator, ensuring optimal CO2 levels, and performing brix calibration with specialized kits and ratio cups. Carbonator Rental offers comprehensive maintenance services designed to keep your system running flawlessly. More info about beverage equipment maintenance services
The Three Pillars of a Perfect Pour
To ensure your system doesn't become a sticky mess, you must focus on these three pillars:
- Temperature Control: Soda must be dispensed at or below 40°F. If the liquid is too warm, the CO2 cannot stay dissolved. This results in "breakout," leading to foamy soda that overflows the glass and creates a mess. Carbonator Rental's expert installation ensures your cooling system—whether it's a cold plate or a remote chiller—is perfectly calibrated.
- Brixing: This is the technical term for adjusting the syrup-to-water ratio. Most standard sodas require a 5:1 ratio (five parts water to one part syrup). If your soda tastes "thin" or "syrupy," your brixing is off. Our maintenance programs include regular brix calibration using a ratio cup and syrup separator to guarantee consistent quality.
- Pressure Management: CO2 regulators must be set correctly. Typically, you need 90-100 PSI for the carbonator to create crisp seltzer, and about 40-60 PSI for the syrup pumps. Our technicians handle these precise pressure adjustments during installation and routine checks.
Troubleshooting Common Dispensing Issues
Even with the best setup, minor issues can arise. Here is how we help our clients in Newark, Princeton, and Atlantic City handle the most common hiccups:
- Flat Soda: Usually caused by a CO2 tank running dry or a carbonator being unplugged. Check your gauges first! If the "High Pressure" gauge is in the red, it's time for a delivery.
- Only Seltzer/No Syrup: This usually means a BIB (Bag-in-Box) is empty. If the box is full, the pump might be "stalled." A quick reset usually does the trick.
- Leaking Nozzles: This is almost always due to a lack of cleaning. Syrup dries inside the nozzle, preventing the internal valves from seating correctly. A 10-minute soak in warm (not boiling) water usually clears it up.
With Carbonator Rental as your partner, you gain access to expert troubleshooting and fast emergency support, ensuring these minor hiccups don't turn into major operational disruptions.
Frequently Asked Questions about Soda Guns
How many flavors can a single gun dispense?
Most standard soda gun system setups handle between 6 and 10 buttons. A typical configuration includes Cola, Diet Cola, Lemon-Lime, Ginger Ale, Tonic, and Seltzer. However, high-end Wunder-Bar guns can go up to 14 buttons, allowing you to add juices, lemonade, or even energy drinks to the same handheld unit.
What is the difference between a cold plate and a remote chiller?
A cold plate uses the ice you already have in your bar's ice bin to chill the soda lines. It is "passive" and requires no electricity. A remote chiller is a powered refrigeration unit that sits under the counter or in a back room. Remote chillers are better for very high-volume pouring where ice might melt too fast to keep up with the cooling demand.
How often should I clean the soda gun nozzle?
Every single night! At the end of the shift, the bartender should twist off the nozzle and the plastic diffuser underneath. Soak them in a container of plain, warm water overnight. Do not use bleach or harsh chemicals, as these can degrade the plastic and affect the flavor of the drinks.
Conclusion
Mastering the post-mix soda gun system is achievable when you prioritize proper installation, diligent maintenance, and precise calibration. By focusing on temperature control, brixing, and pressure management, you can ensure every pour is perfect and mess-free.
Partnering with Carbonator Rental provides you with more than just equipment; you get a complete beverage solution backed by decades of experience. Since 1955, we have been a family-run business dedicated to the success of bars and restaurants across Philadelphia, New Jersey, and Delaware.
From flexible rental options that reduce your upfront costs to dependable, scheduled deliveries of CO2 and syrup, we handle the technical side so you can focus on your customers. Whether you are in Atlantic City, Cherry Hill, or downtown Philly, we are your local "One Stop Shop" for the perfect pour. Explore beverage dispensing equipment solutions
